Products and Services

Click to find out the products we supply for lightning protection systems, bio-engineering material and bio-engineered soils and sand.

Contact us for detailed pricing and more information.



Lightning Protection Systems

Enviro Pro currently supplies equipment for Lightning Protection Systems (LPS) regionally. We are the sole distributor for Independent Protection Inc. (IPC), United States. For their full range of products, visit their website at http://www.ipclp.com/.

LPS 14 x 17 No. 6 Copper Cable

IPC Model No.

IP-22

Technical Specifications

Number of Strands

14

Wire Gauge

17

Type Weave

Smooth

Circular Mils

28,500

Wt per 1,000 '

90 pounds

Approximate Size

1/4 "

Cable Size

No. 6

Standard Spool Size

250 ' and 500 '

Material

Copper

LPS Miniature Tree Drive Fastener

IPC Model No.

IP-190A

Technical Specifications

Length

3.5 "

Weight

0.08 lbs

Material

Bronze

LPS Mini to Mini Cable Double Splicer

IPC Model No.

IP-193X22

Product Description

Cast bronze crimp splicer. For use with two bonding cables.

Technical Specifications

Length

2 "

Weight

10 lbs each

Material

Bronze

LPS Blunt Tip Air Terminal Point

IPC Model No.

IP-M195 BT

Technical Specifications

Length

2.5 "

Weight

0.12 lbs

Material

Brass

Bio-Engineering Materials

Enviro Pro also supplies materials for bio-engineering projects in Singapore, Malaysia and Indonesia.

We are the sole distributor for Bestmann Green Systems, Germany. For their full range of their products, visit their website at http://www.bestmann-green-systems.de/. Enviro Pro is also a member of the International Bio-Engineering Group.



BesTec® Rock Roll/Rock Logs

Type

SKM 2/2: 5 chambers, yarn thickness 4 mm

SKM 2/3: 8 chambers, yarn thickness 4 mm

Product Description

BesTec® RockLogs are rock based construction elements used for various bank stabilization techniques along lake shores, on streams and in salt marshes where engineered safety has to be combined with ecological function and aesthetics.

Technical Specifications

Dimensions (Standard)

Length: 1.0 m

Ø 40 cm

Material

Netting: High-strength polypropylene, inert

Woven in one piece.

Filling

BesTec® RockLogs are made of approx. 2 - 6 inches/50 - 150 mm sized stone and an additional filler substance, filled into a special polypropylene netting.

BesTec® Chamber Rock Mattress

Type

SKM 2/2: 5 chambers, yarn thickness 4 mm

SKM 2/3: 8 chambers, yarn thickness 4 mm

Product Description

Highly tear resistant net for heavy loads, knot free stitches, no knots in the net mesh. Fully machine sewn net box without being stitched together

Technical Specifications

Weight

Approximately 300 kg/sqm

Dimensions

SKM 2/2: 2.0 x 2.0 x 0.2 m (L x W x H)

Chamber width: Approximately 40 cm

SKM 2/3: 2.0 x 3.0 x 0.2 m (L x W x H)

Chamber width: Approximately 38 cm

Material

Polypropylene, multi-filament, mesh count = 110 dtex, fineness related.

Traction

7 cN/den

Mesh Size

Approximately 45 to 48 mm

Maximum mesh tension (4 mm yarn): 1.6 kN or 17.9 kN/m Rtex 3300 according to DIN EN ISO 1806 and DIN EN ISO 10319

Maximum mesh tension (>4 mm yarn): 2.8 kN or 31.6 kN/m Rtex 6000 according to DIN EN ISO 1806 and DIN EN ISO 10319

Filling

Round grain, unbroken, similar to EN13 383 natural rock, size class CP45/125

Water block (natural rock) similar to EN13 383/1, size class CP45/125 Ro NR

Water bricks (metal slag) similar to EN13 383/1, size class CP45/125 Ro NR

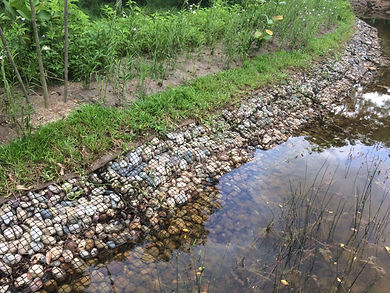

BesTec® Wire Gabion, Type DSK (Weld)

Type

DSK-V (Galvanized) coating: triple life (95% Zinc and 5% Aluminium)

DSK-S (Stainless steel) 1.4571

DSK-V700

Technical Specifications

Weight

900 g/sqm

Mesh

76.2 x 76.2 mm

Wire Strength

Ø 3.00 mm

Ø 4.00 mm

Ø 5.00 mm

Dimensions

Length: 0.5, 1.0, 1.5, 2.0, 3.0, 4.0 m or customised size

Width: 1.0 m  or customised size

Height: 0.5, 1.0 m or customised size

Material

Steel ≥ 350g / m² galvanized (Galfan®, Zinc-Aluminium)

Stainless steel V4A (1.4571) or others



AquaGreen® RepoFloat®

Type

RepoFloat® I-3

Product Description

A floating mat made up of decay resistant polypropylene and polyethlyene. It allows for optimal root growth through the material. Suitable for water and wastewater treatment through the extensive rhizosphere grown through the substrate into the water column, providing an excellent growth medium for microorganisms. Can be integrated with buoyancy devices and combined with other plant substrate materials such as BesTex® fiber mats made from coconut fiber.

Technical Specifications

Weight

Approximately 1.7 kg/m

Dimensions

Before enclosure: 23 - 25 mm

After enclosure: 25 - 27 mm

Material

Polypropylene

Polyethylene

UV stabilised with 250 to 300 kiloengley

Buoyancy

Approximately 15 kg/sqm

AquaGreen® RepoFloat®

Type

RepoFloat® I-3

Product Description

A floating mat made up of decay resistant polypropylene and polyethlyene. It allows for optimal root growth through the material. Suitable for water and wastewater treatment through the extensive rhizosphere grown through the substrate into the water column, providing an excellent growth medium for microorganisms. Can be integrated with buoyancy devices and combined with other plant substrate materials such as BesTex® fiber mats made from coconut fiber.

Technical Specifications

Weight

Approximately 1.7 kg/m

Dimensions

Before enclosure: 23 - 25 mm

After enclosure: 25 - 27 mm

Material

Polypropylene

Polyethylene

UV stabilised with 250 to 300 kiloengley

Buoyancy

Approximately 15 kg/sqm

BesTex® Erosion Protection Blanket Type VG

Type

VG 10

Product Description

Coconut fibers, woven in the longitudinal and transverse direction (warp and weft). Mesh not knotted and slidable.

Technical Specifications

Weight

900 g/sqm

Mesh Width

Approximately 8 - 12 mm



Dimensions

2 x 25 m

1 x 50 m

Material

100% coconut fibers

Chemically untreated

Tear strength warp direction

2700 daN/m (Standard: ATSM D4545)

Tear strength direction of shooting

1300 daN/m (Standard: ATSM D4545)

Open area

Approximately 35%

Binding point distance

> 1.5/ <1.5 cm

BesTex® Erosion Control Blanket

Type

RFM/1

Product Description

BesTex™ Fibre Mats Type RFM are machine made.

The fibres are evenly distributed which leads to a better area filter effect.

Technical Specifications

Weight

900 g/sqm

Mesh Width

Approximately 8 - 12 mm



Dimensions

2 x 25 m

1 x 50 m

Material

100% coconut fibers

Chemically untreated

Tear strength warp direction

2700 daN/m (Standard: ATSM D4545)

Tear strength direction of shooting

1300 daN/m (Standard: ATSM D4545)

Open area

Approximately 35%

Binding point distance

> 1.5/ <1.5 cm

BesTex® Erosion Protection Mat

Type

ESM-P/P (default)

ESM-P/P-V (amplified)

Product Description

Erosion protection mat consisting of a wave-shaped, three-dimensional cladding mat, upper and lower grille and synthetic fiber insert.

Technical Specifications

Weight

22.5 kg/roll

45 kg/roll

Fiber layer: 550 g/sqm

Dimensions

1.0 x 25 m (25 sqm)

2.0 x 25 m (50 sqm)

Material

Fiber and net: Polypropylene

Fiber content: 100%

Lattice fibers and corrugated monofilaments of polypropylene

All materials UV-stabilised

ESM-P/P-V: With glass fiber amalgamating fabric instead of polypropylene as upper net

Tear strength

50 MJ/sqm /> 100% (DIN EN 12224: 2000-11)

Tensile strength

MD 10.3 kN/m/13%, CMD 20.4 kN/m/4% (DIN EN ISO 10319l 2008-10)

Extensibility

MD 5.4 - 14%, CMD 5.8 - 6% (DIN EN ISO 10319: 2008-10)

Fire behaviour

Class F, according to DIN EN ISO 11925-2: 2011-02, DIN EN ISO 13501-1: 2010-01

ArmaFlor® Fibre/Coir Rolls and Slope Fascines

Type

VF150

VF200

VF300

VF400

VF400 Q (square)

VF500

VF600

VF600 Q (square)

Product Description

ArmaFlor®-Vegetationsfaschinen is made of coconut fibers with an average fiber length of 10 -15 cm. Compression of the fibers in the net wrapping is performed with homogeneous compression. The ArmaFlor® vegetation machines offer the following advantages:



  • Temporarily flexible component (biological degradation),

  • Solid foot protection,

  • Effective filter (sediment capture),

  • Flushing-proof substrate for reed beds and shrubs.

Technical Specifications

Weight (dry)

VF150 approximately 4 kg/m

VF200 approximately 5 kg/m

VF300 approximately 7 kg/m

VF400 approximately 15 kg/m

VF400 Q (square) approximately 15 kg/m

VF500 approximately 22 kg/m

VF600 Q (square) approximately 28 kg/m

Dimensions

Standard Ø 150, 200, 300, 400, 500, 600 cm

Standard length 2.2 m, 3 m, 6 m

Other lengths can be ordered upon request

Material

100% coconut fibers (Fiber length approximately 5 - 15 cm)

Chemically untreated

Additional equipment

Pre-drilled seed holes (for VF200 - 500)

Pre-planted or pre-cultivated

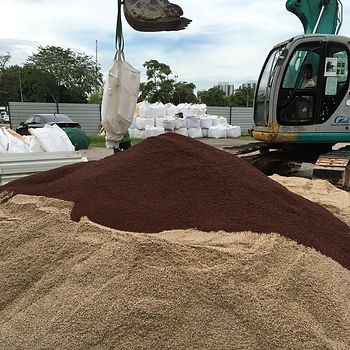

Bio-Engineered Soil Media

Other materials that Enviro Pro offer include bio-engineered soils media, including silica sand, river stones, etc for bio-filtration purposes, all tailored to our clients' specifications.

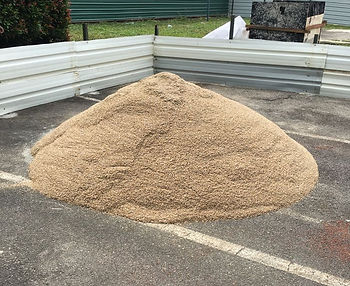

Silica Sand/River Sand

Type

Silicon Dioxide, SiO2

Product Description

Silica sand is the most commonly used filter media because of its great abundance and physical properties. It can be used as basic sand filters with a purity of > 97% silica content.

Technical Specifications

Composition

97% silica

Uniformity Coefficient

1.32

Dimensions

Available at various sizes

Bio-engineered Soils (For Rain Gardens or Bio-Retention Basins)

Type

Filter media

Product Description

Filter media for rain gardens or bio-retention basins is primarily made up of compost, loamy soil and sand. It is required to support a range of vegetation types and infiltration rates (hydraulic conductivity).

Technical Specifications

Composition

Compost

Loamy soil

Sand

Available at variable mixing ratios.

Hydraulic conductivity

Available at variable hydraulic conductivities.

Bio-engineered Soils (For Cleansing Biotopes)

Type

Filter media

Product Description

Filter media for cleansing biotopes is primarily made of silica sand and lava stone at a mixing ratio of 85:15. Lava stone is added due to its high porosity which provides habitat for microbial growth.

Technical Specifications

Composition

Silica sand

Lava stone

Available at various sizes.

Hydraulic conductivity

Available at various hydraulic conductivities.

Stones

Type

Red lava stone

Rounded river stone

Medium stone

Available at various types.

Product Description

Stones can be used for both aesthetic and functional purposes, e.g. to reduce scouring in bio-retention and drainage systems, or provide habitat for microbial growth. They are available in various qualities and specifications.

Technical Specifications

Dimensions

Available at various sizes (40 mm to 400 mm)

Material

Red lava stone: Silica (SiO2), Hematite (Fe2O3)
